WELCOME
CNC-machined frames
Hi, I am Simon.
Curiosity and the passion for technical challenges, together with my long-time experience in engineering, are my driving force behind innovative concepts. My high demand for relentless function and an aesthetic design, render my bikes with an exclusive character.
Since 2018, I design and manufacture ACTOFIVE bicycle frames, made in Germany.
P-TRAIN CNC
Redefining the status quo
The deep-feeling HPP suspension gives massive traction and confidence on fast, rough trails while not missing trailbike attitudes through a well-balanced package.
>> 29 Zoll, HIGH PIVOT (HPP) suspension
>> 135 or 145 mm travel for Trail- and Enduro riding
>> CNC-machined from soild blocks of 7075 T6 aluminum
>> ADJUSTABLE RIDE° ready
DETAILS
| [mm] | |
|---|---|
| Intend Use | Trail, AM, Enduro |
| Material | CNC-machined from solid aluminum 7075-T6 |
| Geometry Setup options ADJUSTABLE RIDE° |
BB Height / Travel / Mullet / Chainstay Lenght / Head Angle |
| Max. Wheel Size | ≈ 29“ x 2,5“ (80 mm total) |
| Travel Rear ADJUSTABLE RIDE° |
135 / 145 |
| Travel Front | 140 – 160 |
| Rear Axle | Syntace 12 x 148 |
| Headset | IS41/28.6 – IS52/40 |
| Seat Tube inner Ø | 34,9 |
| Max. Insert Seatpost | S: 202 / M: 232 / L: 252 |
| Max. Chain Wheel Size | 34 |
| Shock Length | 210 x 55 Metric |
| Shock Hardware | 25 x 8 |
| Brake Mount | PM 180 |
| BB Type | 73mm BSA, ISCG 05 mount |
| Bottle Mount | 1 x Downtube topside 1 x Downtube bottomside |
| Weight | 4.000 g (S2, w/o shock) |
| Colors | Raw or anodized in black, blue, dark green, red |
| Shock Options | EXT STORIA LOK V3 CUSTOM TUNE FOX DHX2 F-S Cr 2pos-Adj FOX FLOAT X2 F-S K 2pos-Adj ÖHLINS TTX2Air ÖHLINS TTX22M others on request |
GEOMETRY
| S1 [mm] | S2 [mm] | S3 [mm] | |
|---|---|---|---|
| Reach | 455 | 475 | 505 |
| Top Tube Lenght | 602 | 622 | 652 |
| Stack | 618 | 627 | 636 |
| BB Height ADJUSTABE RIDE° |
LOW: 338 HIGH: 343* |
||
| BB Drop ADJUSTABE RIDE° |
LOW: -34 HIGH: -29* |
||
| Wheelbase ADJUSTABE RIDE° |
SHORT: 1200 LONG: 1207 |
SHORT: 1220 LONG: 1227 |
SHORT: 1250 LONG: 1257 |
| Chainstay Lenght ADJUSTABE RIDE° |
neutral / SAG / 50% / 100% SHORT: 423 / 434 / 438 / 441 LONG: 430 / 440 / 445 / 448 |
||
| Seat Angle effective | 77 deg | ||
| Seat Tube Length | 415 | 445 | 465 |
| Head Angle ADJUSTABE RIDE° |
BASE: 65° (±0° Headset Cup) SLACK: 64,25° (±0,75° Headset Cup) SLACKER: 63,5 (±1,5° Headset Cup) STEEP: 65,75 (±0,75 Headset Cup) |
||
| Head Tube Length | 105 | 110 | 120 |
| Reference Fork Length | 561 ( 150mm Travel )** | ||
| Reference Fork Offset | 46 | ||
| Reference Wheel Diameter | 744 | ||
| * BB Setting HIGH: Reach + 7 mm // BB Hight + 5 mm // Seat Angle +0,65 deg // Head Angle +0,65deg BB Setting HIGH recommended for 160mm Travel Front and 145 mm Travel Rear |
|||
| ** 140 / 160 mm Travel Front: Reach +7 / -7mm // BB Height -3 / + 3 mm // Wheelbase -4 / + 4 mm // Seat Angle +0,65 / -0,65 deg // Head Angle +0,65 / -0,65 deg |
|||
| Full geometry compensation for mullet. | |||
STORE
| product | net | gross (incl. 19 % VAT) |
|---|---|---|
| P-TRAIN CNC HPP Frame | 3.550,00 EUR | 4.224,50 EUR |
| EXT STORIA LOK V3 incl. spring | 718,30 EUR | 854,78 EUR |
| ÖHLINS TTX22M incl. spring | 576,00 EUR | 685,44 EUR |
| 2021 FLOAT X2 F-S K 2pos-Adj Orange Neutral Logo | 702,00 EUR | 835,38 EUR |
| FOX 2021 DHX2 F-S Cr 2pos-Adj Orange incl. SLS spring | 800,00 EUR | 952,00 EUR |
| AR°- Kit 1 Head Angle 0° incl. pressing device | 125,00 EUR | 148,75 EUR |
| AR°- Kit 2 Head Angle ± 1° incl. pressing device | 125,00 EUR | 148,75 EUR |
| AR°- Kit 3 Rocker for 135 mm Travel | 125,00 EUR | 148,75 EUR |
| AR°- Kit 4 Rocker for 145 mm Travel | 125,00 EUR | 148,75 EUR |
| AR°- Kit 5 Mullet (F29″/R27,5″) and long chainstay (29″ only) | 167,00 EUR | 198,73 EUR |
| second spare idler pulley | 25,00 EUR | 29,75 EUR |
| second spare hanger | 21,00 EUR | 24,99 EUR |
New order´s delivery time will be approx. 12 Weeks from date of advance payment.
To place your order, please fill the following form. You will receive your invoice via mail. The pre-charge is 65% charge for the frame and 100% charge for the shock. The final payment needs to be done shortly before delivery.
All frames will be delivered with Headset, Seat clamp, Rear axle, spare hanger and a second idler pulley included. Choose your cost neutral ADJUSTABLE RIDE° base setup. If you want to change it by yourself, you need to purchase AR°- Kit´s (see price list).
Your order
FAQ

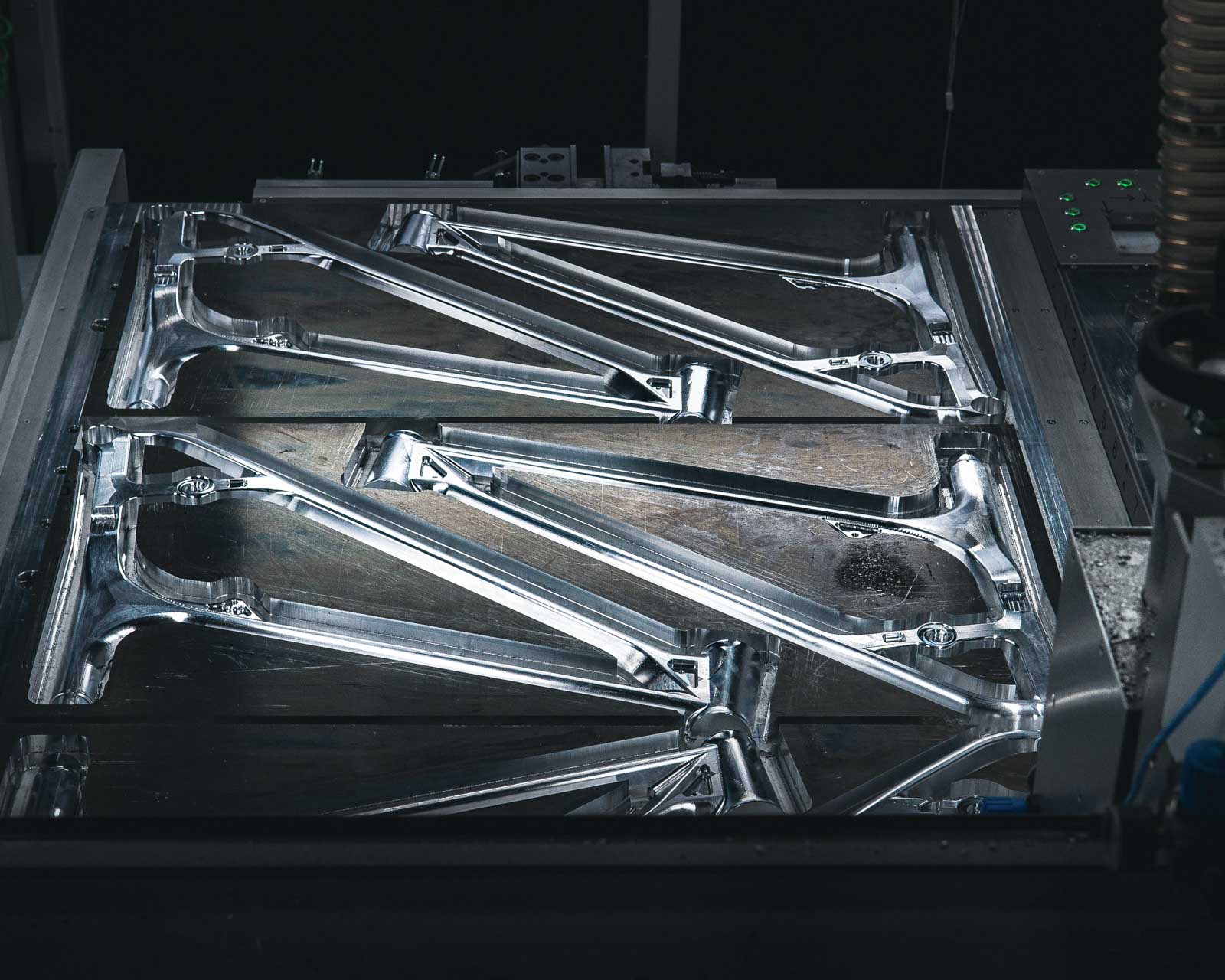

Each component is manufactured here in Dresden under the roof of METZNER Engineering GmbH by using state-of-the-art CNC manufacturing equipment and measuring systems. The processing time of the four main part takes around 22 hours while machining 38 Kg of 7075-T6 aluminum. Chips as well as larger residual parts are recycled.

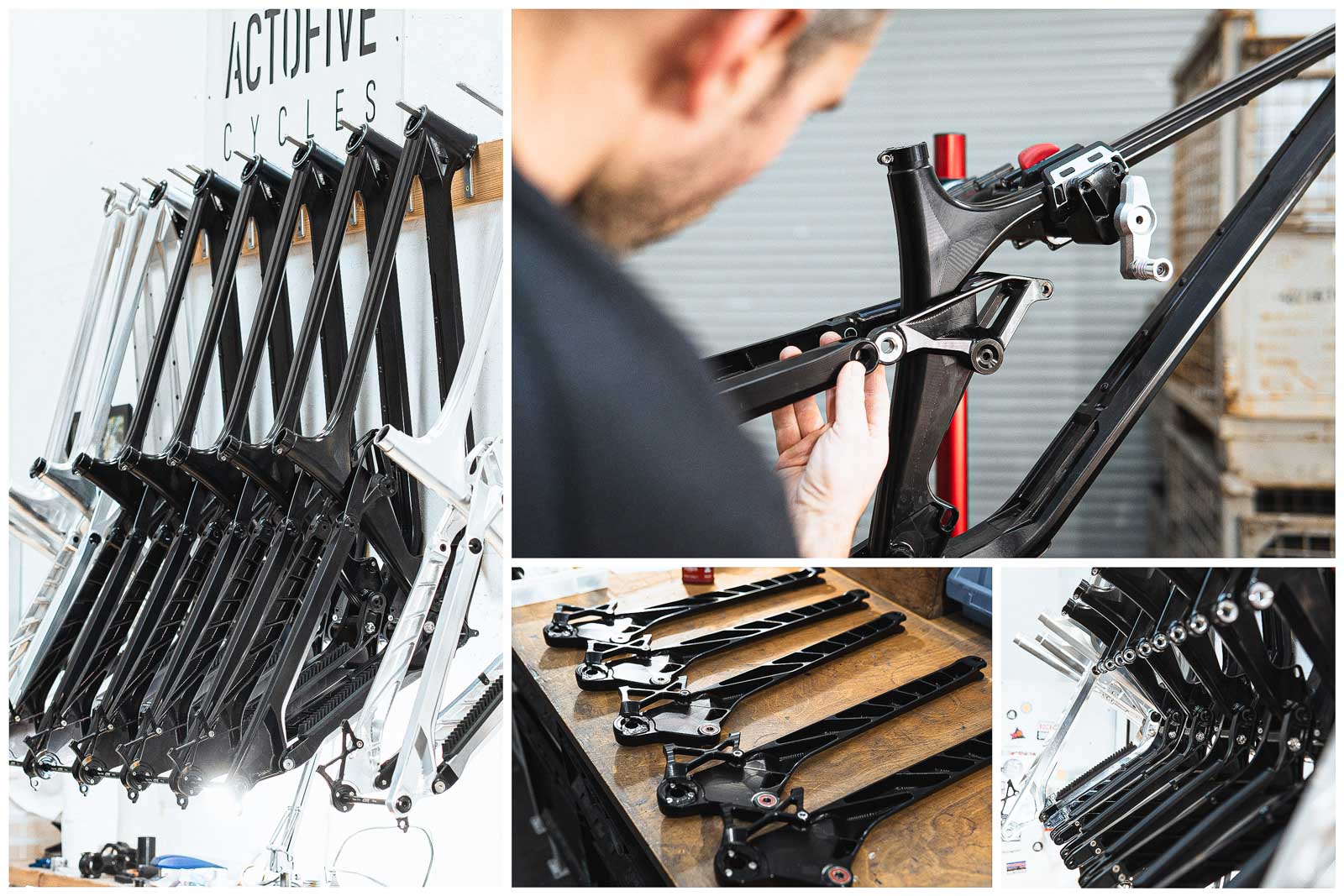

ACTOFIVE Frames are precision manufactured, carefully joined and conscientiously assembled. The verification of safety and durability is performed according to the EFBE TRI-TEST® consisting of fatigue tests, maximum load tests and overload test in various load cases.
The warranty is 5 years from date of purchase and covers manufacturing defects only.
Costs for returns are covered for customers within the EU.
The P-Train will be fabricated in a limited edition and is available worldwide.
Be individual! The front triangle and the rear end can be anodized before joining. Find suggestions on social media or on NEWSBLOG.
Please note: Anodized colors may vary slightly.
Not at the moment. Please ask your local bike shop. Only some selected components are available.
Ask for a set-price.
With 1,78m and 80cm inseam, my personal bike has size S2. Please note: Due to its steep seat angle, the bike feels relatively compact.
Please fill and submit the order form. After your order, you will get an invoice with a 65% pre-charge for the frame and 100% charge for the shock and additional parts.
After your payment, the project officially starts. The final payment needs to be done shortly before delivery.
Delivery within Germany and EU:
The delivery within Germany and EU is free of charge. The customer is responsible for any TAX (B2B only)
Delivery within non EU:
The customer is responsible for shipment costs, TAX, custom charges as well as other import costs. Shipment costs are charged with 150 EUR. Delivery times vary between two and six weeks.
Chains with 120 links suffice in most cases . To be safe , go for 126 links.
Please note: standard oval chainrings are incompatible with High Pivot.
